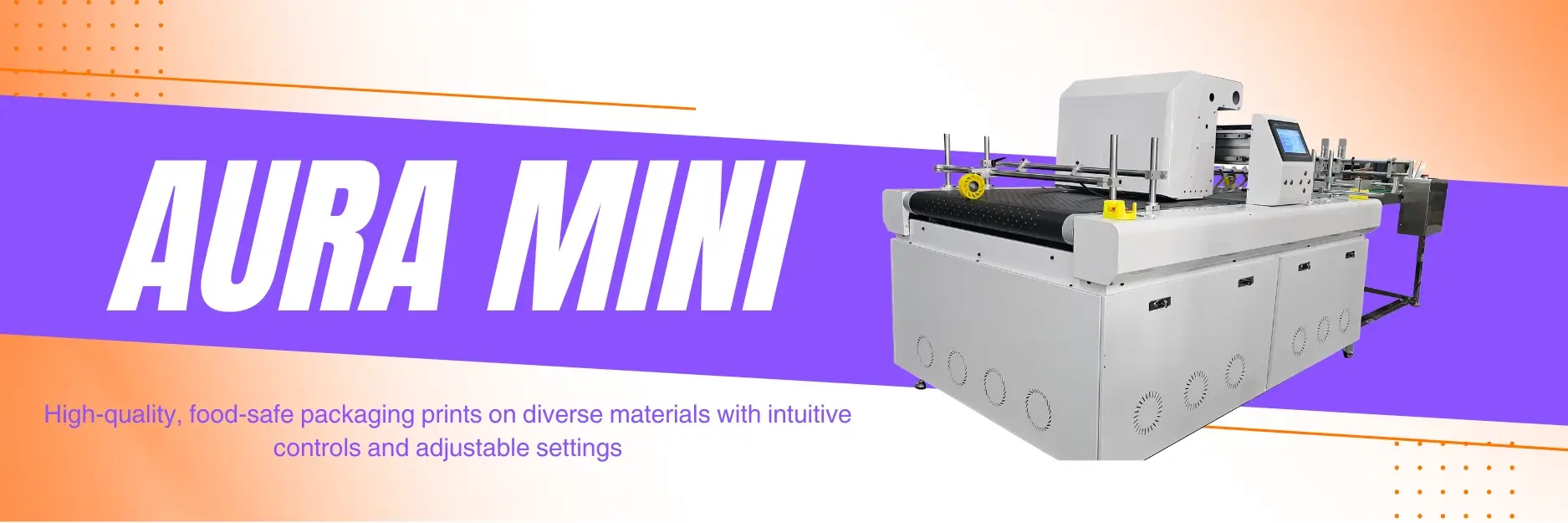

Aura - Mini800 - 1HP / 2HP

Our direct-to-packaging printing solution is designed to meet the diverse needs of modern packaging. It is compatible with a wide range of materials, including Kraft paper, wood, and any media that can be printed with water-based inks. This system allows for high-quality printing on various packaging items such as Corrugated paper, cardboard, paper bags, Pizza boxes, Shopping bags, Coffee bags.

The system is equipped with a user-friendly touchscreen interface for intuitive operation. It features fully adjustable speed settings, allowing you to fine-tune performance for the best possible print quality across different materials and applications.

  • The system supports paper widths ranging from 50mm to 750mm, offering versatility for different packaging sizes.
  • It is also ideal for food-friendly packaging, ensuring prints are durable, fade-resistant, and water-resistant.

Applications

Specifications

Printing Head

1 – 2, HP 452 Printhead

Colors

C.M.Y.K

Max Paper Width

750mm

Min Paper Width

50mm

Max Printing Width

215mm (1 Head), 430mm (2 Heads)

Min Paper Length

40mm

Material Thickness

1.5 to 15mm

Resolution

1200 x 300, 1200 x 600, 1200 x 1200 DPI

Printing Mode

One Pass Printing

Printing Technology

Thermal Printhead

Printing Speed

10 – 30 Meter / Minute (Adjustable)

Control System

Fully Function Controlled by Touch Screen

Support File

TIFF BMP JPG JPEG CDR, etc

Data Transfer

NIC + Optical Cable

Printing Media

Kraft Paper, Wood or Any Media Which Can Be Printed With Water Base Ink

Air Required

0.6-0.84Mpa, ≥ 150L / min

Power

AC 120V, Single Phase, 50/60 Hz, 2kw

RIP

Maintop

Working Condition

Temperature 20C~30C, Humidity 40~60%

Machine Dimension

3 mtr (L) x 1.2 mtr (W) x 1.2 mtr (H)

Inks

InksPackingCyanMagentaYellowBlack
Regular Dye Ink100KGsXXXX

Resources

Brochure
